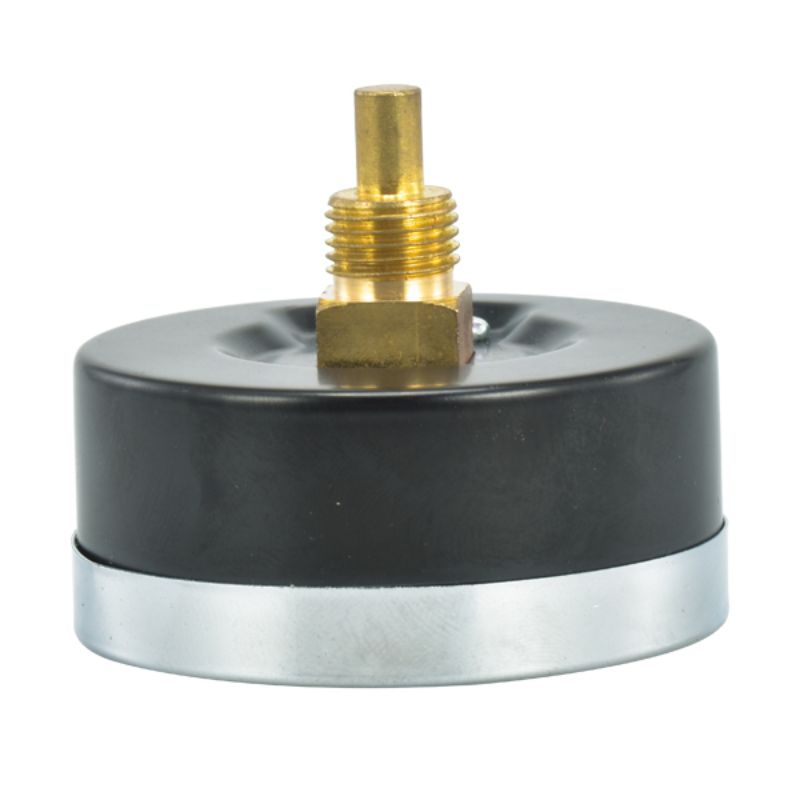

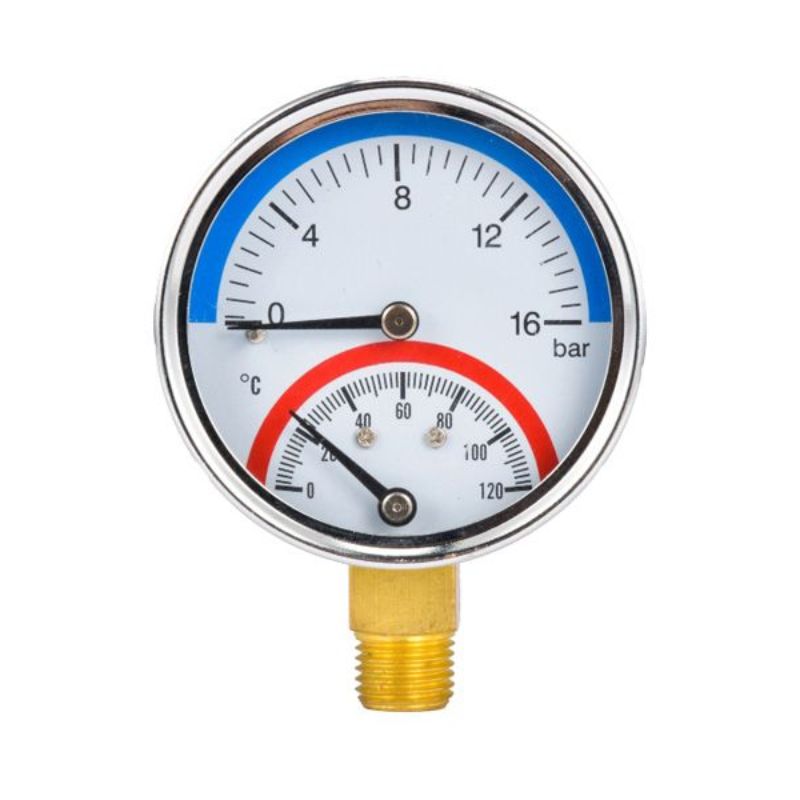

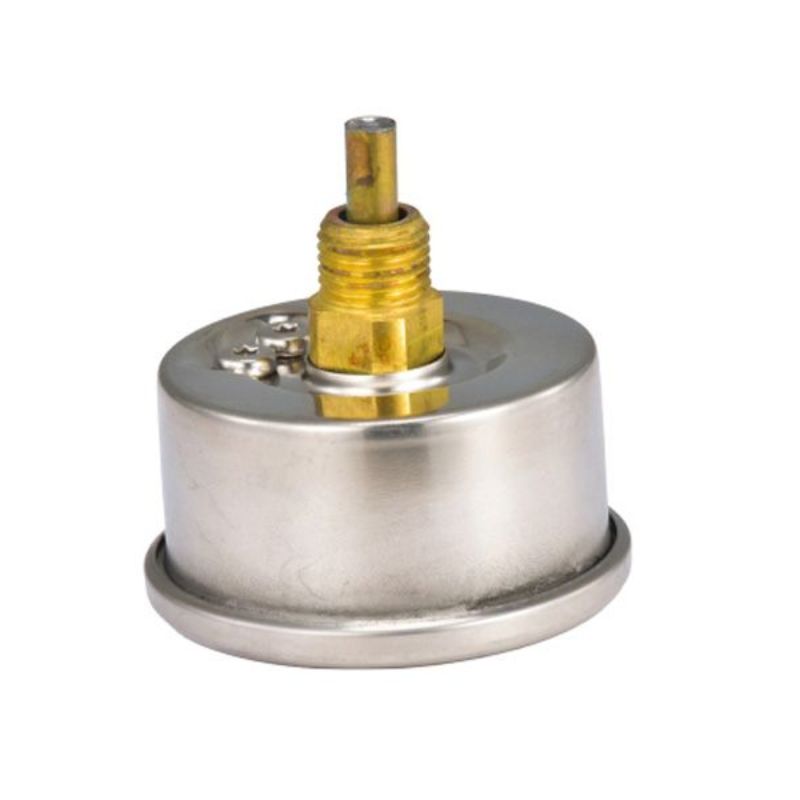

该温度压力表带双金属测量系统,可通过探杆直接安装到测量点。该仪表配置阀门,可以在不关闭供暖系统的情况下轻松拆卸。此外,该仪表结合了压力表和双金属温度计,可灵活用于各种应用。
标准尺寸(mm):63和80
准确度等级:压力:±2.5% / 温度:±2.5%
量程压力:0 ... 0.1 MPa 至 0 ... 1.6 MPa
量程温度:0 ... 100℃ 至 0 ... 120℃
稳定压力: 3/4 x满量程值
波动压力: 2/3 x满量程值
瞬时压力:满量程值
温度:满量程值
压力测量元件:波登管,铜合金
温度测量元件:螺旋形式双金属,铜合金
This temperature and pressure gauge features a bimetallic measurement system and can be directly installed at the measurement point via a probe. The instrument is equipped with valves, allowing for easy removal without shutting down the heating system. Additionally, this gauge combines a pressure gauge and a bimetallic thermometer,
making it versatile for various applications.Standard sizes (mm): 63 and 80
Accuracy class: Pressure: ±2.5% / Temperature: ±2.5%Pressure range: 0 ... 0.1 MPa to 0 ... 1.6 MPa
Temperature range: 0 ... 100℃ to 0 ... 150℃Steady pressure: 3/4 of full scaleFluctuating
pressure: 2/3 of full scale
Maximum pressure: full scaleTemperature: full scalePressure measuring element: Bourdon tube, copper alloyTemperature measuring element: Spiral bimetal, copper alloy
