外贸专供 PTZ太阳能摄像头无线WIFI监控摄像机4G旋转远程报警高清摄像头
价格
起批量
¥411.00起
白色-英文4G款+6节电池+32G内存卡
黑色-英文WiFi款/不含电池/不含内存卡
黑色-英文WiFi款+6节电池+16G内存卡
店内搜索

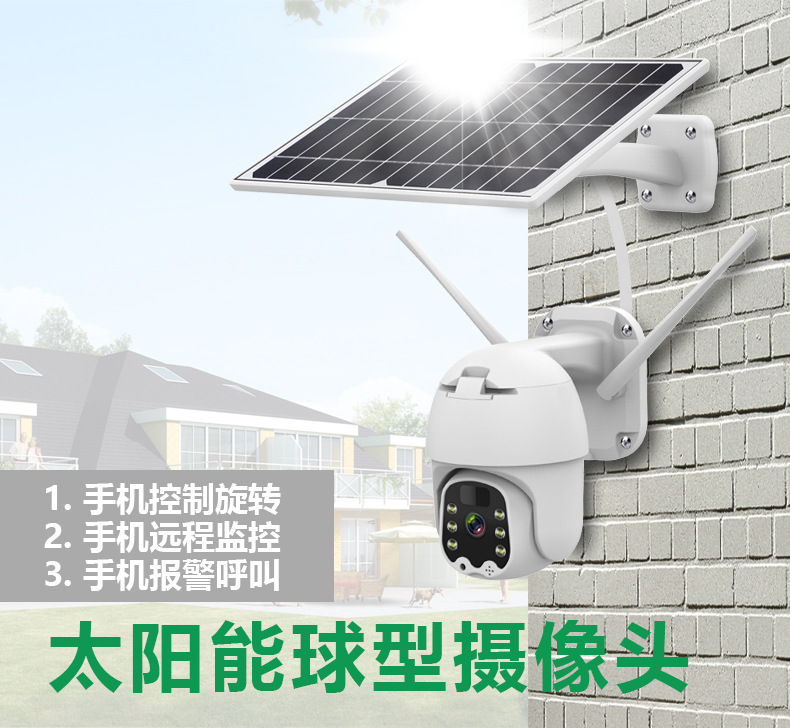

什么是低功耗太阳能监控摄像头?
在太阳下(包括自然光线)通过摄像头的太阳能板充到电池里(18650锂电池3.7V),摄像头需要电池供电才能够正常工作。
这是一款会自动休眠的监控摄像头,为了减低功耗摄像头在没有动态的情况下会自动关机同时也不录像。在画面中距离7-10米半径出现动态会自动启动同时自动录像,打开App也可以启动摄像头同时自动录像。
太阳的充电,摄像头的休眠状态,可满足摄像头长时间有电可无期限使用。人流量越少的环境电量越充足。
Q5球机
耗电实测
电池:6节 每节94%电量,在完全不充电的状态下拍摄颜色智能科技公司,品牌 潜伏者 生产线工作时间的数据
占用内存卡=5.88G
测试开始时间=2021-03-26 12:45
测试结束时间(保存视频文件最后一个)=2021-04-06 8:59
记录视频数量 5807段 MP4格式视频 每段18秒视频
结论:配对到关机 全程没有开启夜视灯状态(都是录制白天的效果)
一共工作 12天(实际:284小时),【其中有:唤醒工作时间104526秒(72.58小时),休眠时间:761112秒(211.42小时)】
充电实测:
测试开始时间=2021-04-22 11:00
测试结束时间=2021-04-24 17:00
6节初始电量0%(以上次测试耗电到关机为止的电量)日照一共25小时,其中云层较多天气充电18小时,云层较少天气充电7小时
测试期间设备启动工作合计时间为:3小时1分18秒 一共记录571段 MP4格式视频,每段18秒视频,最终电量6节96% 测试完成。

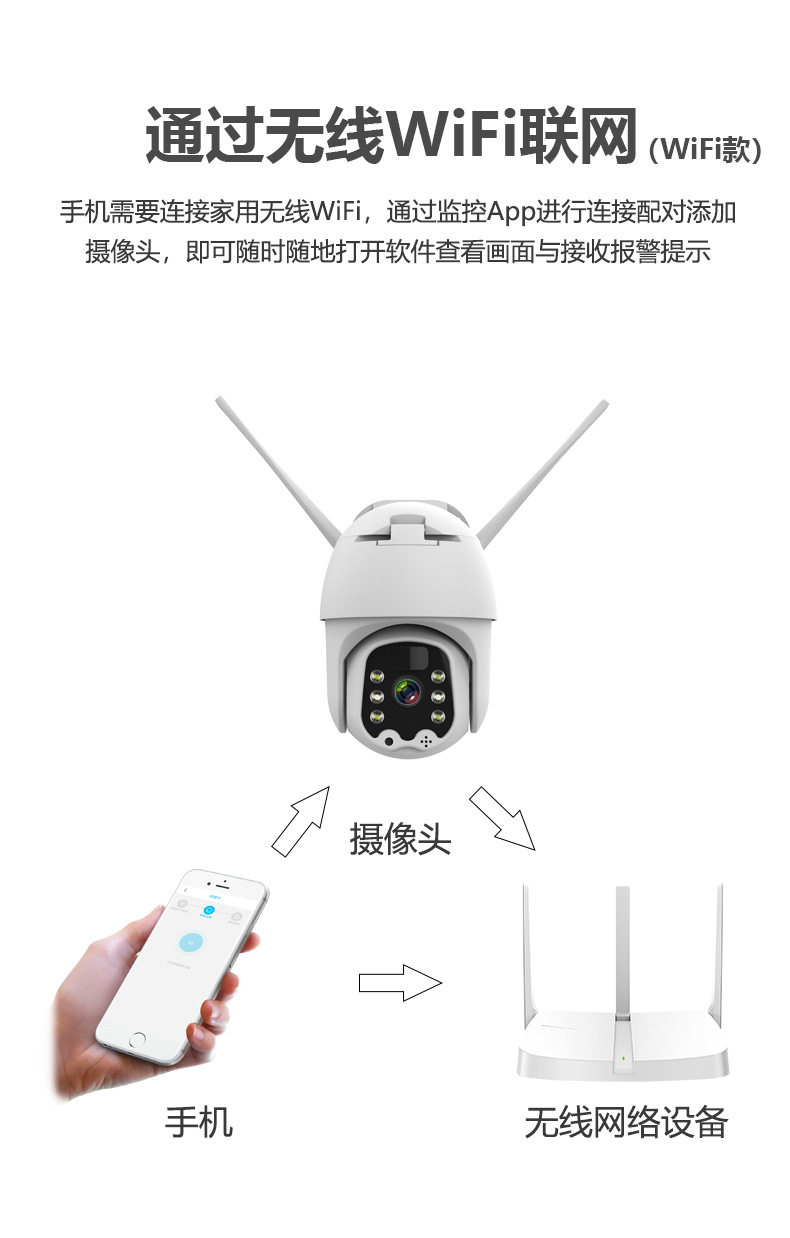

WIFI参数
Model:Q5-WIFI |
4G Camera |
WiFi Camera |
||
Network |
4G Standard |
N/A |
Support |
|
4G FrequencyRange |
N/A |
Support |
||
InterfaceType |
N/A |
Support |
||
Wireless Standard |
Support |
IEEE802.11b, 802.11g, 802.11n Draft |
||
Frequency Range |
Support |
2.4 GHz to 2.4835 GHz |
||
Wireless Security |
Support |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
||
Transmission Rate |
Support |
11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
||
Video |
Sensor |
lngenic T31ZL GC2063,CMOS |
||
Video Eesolution |
Main stream: 1920x1080@15fps, Sub stream: 640x360@15fps |
|||
Video Compression |
H.265 |
|||
Lens Type |

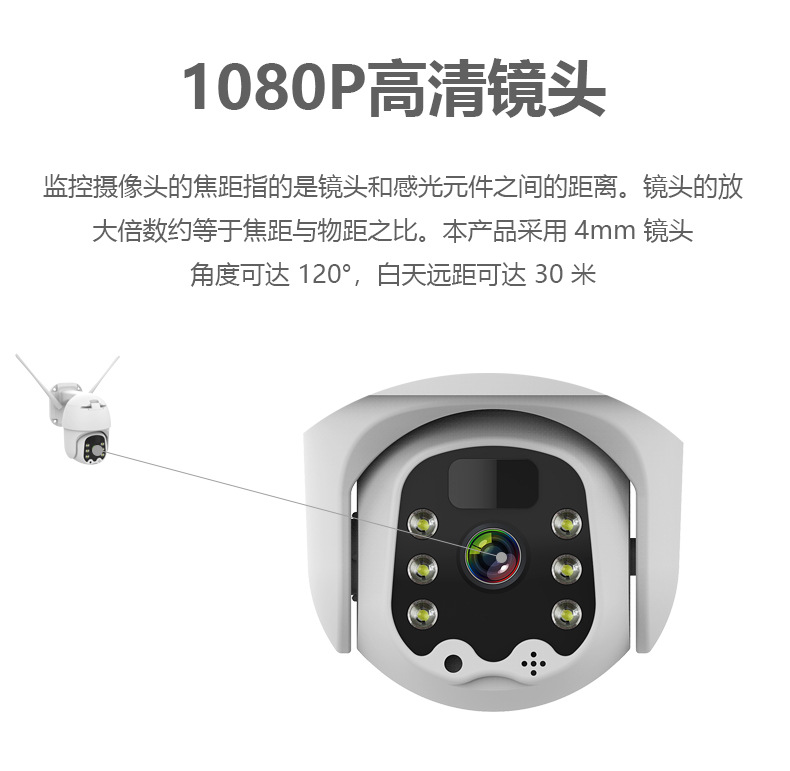

4mm F2.0 lens, Low lux., wide view angle:120 degrees. 3X digital zoom |
|||

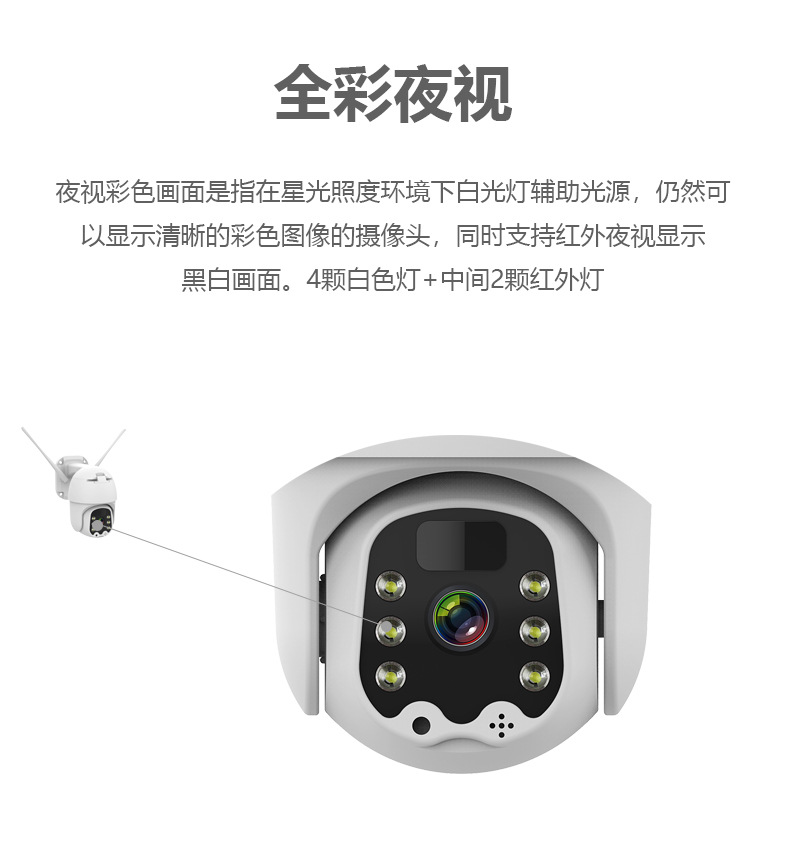

NightVision |
6pcs array infrared LEDs,night vision distance 30m.Full-colorful day/night |
|||
Audio |
AudioCompression |
G.726/AAC. Audio code rate:8Kbps, 16bit |
||
AudioInput/Output |
Built-in MIC and Speakers, support two way audio |
|||

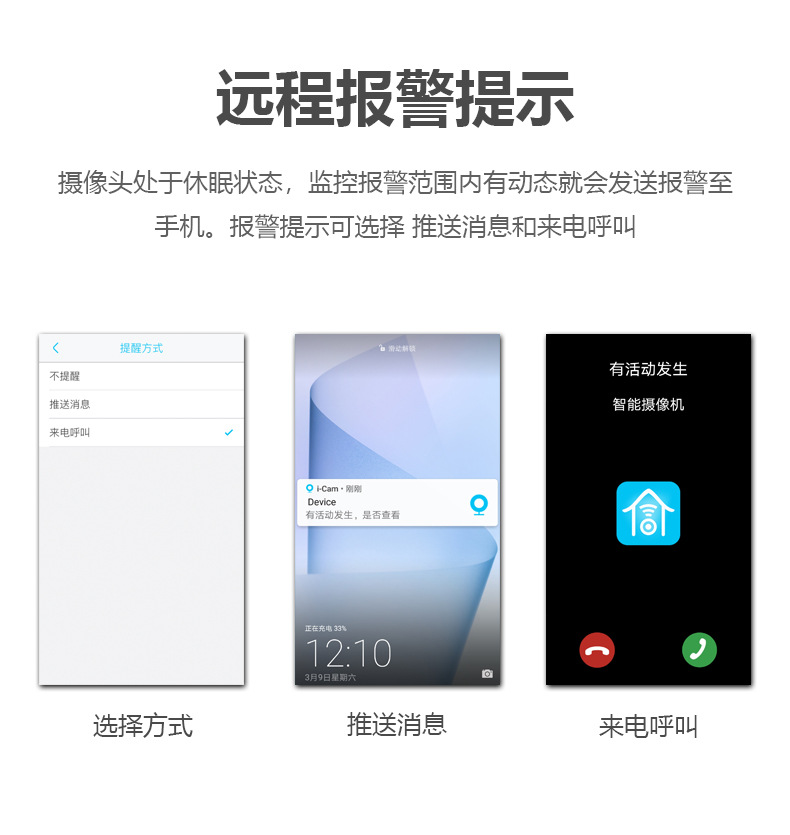

Alarm |

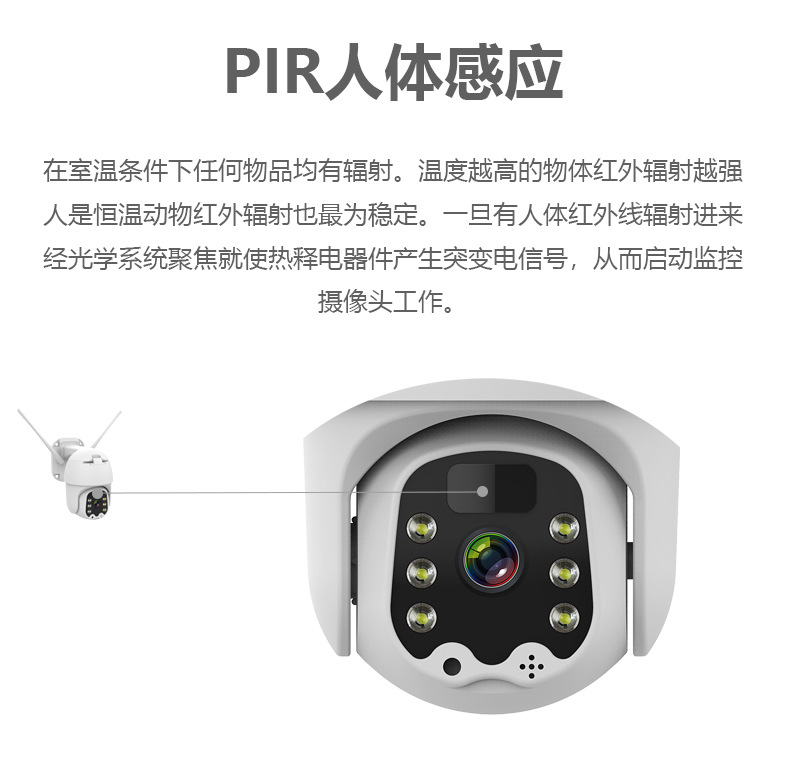

PIR Detecting Alarm |
Support max12 meters PIR detection range. |
||
AlarmLinkage |
Alarm record videos to Micro SD card |
|||
Storage |
Micro SD Card |
Support up to 128G micro SD card. Support cloud storage |
||
Recording Mode |
PIR alarm recording. |
|||
Video Playback |

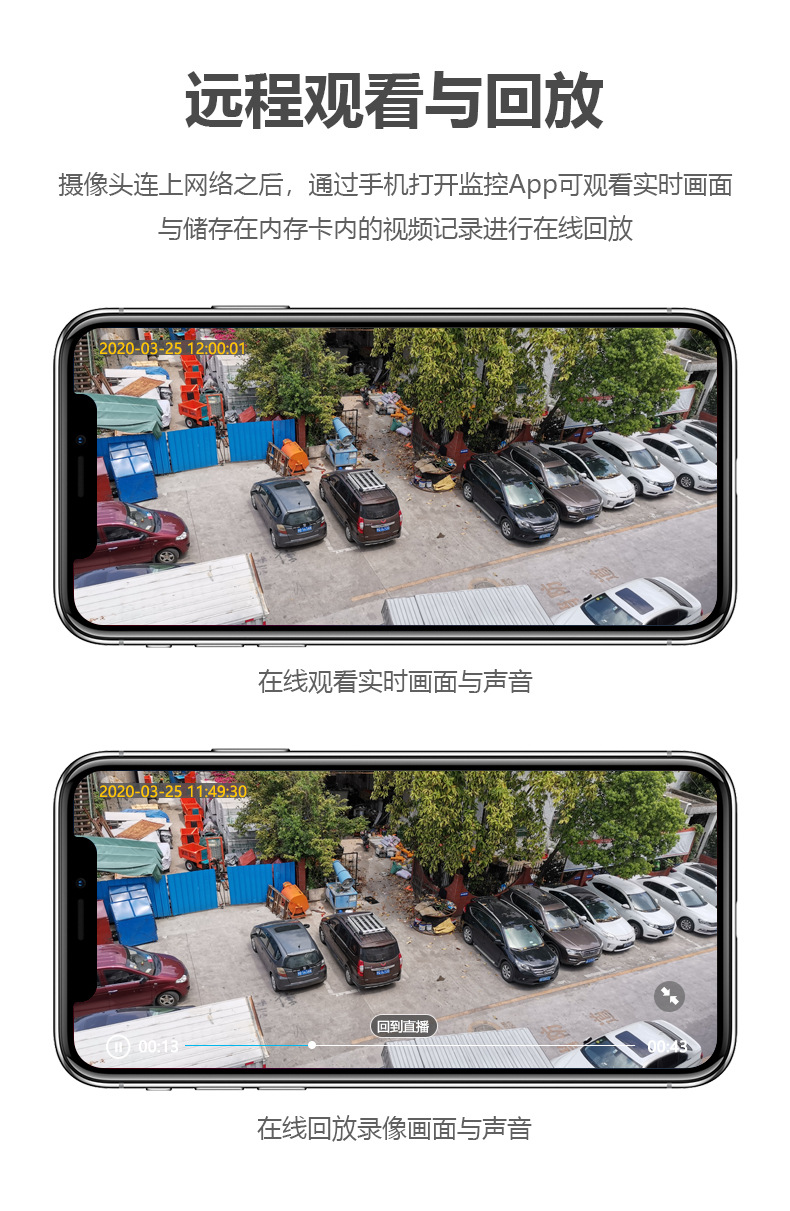

Support Appremote play and download the video |
|||
Power |
SolarPanel |

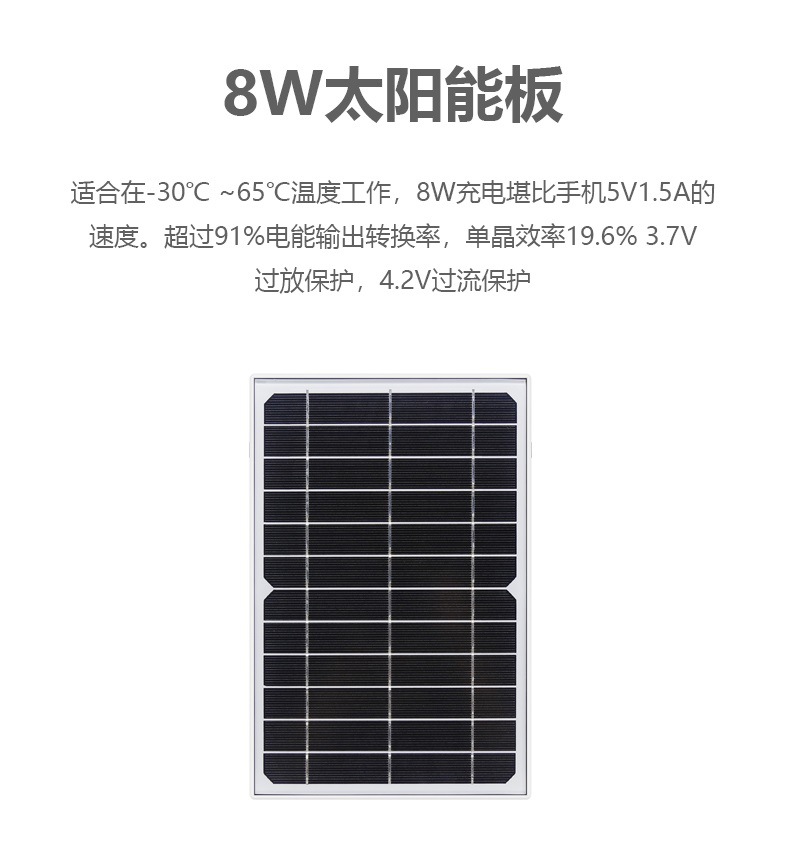

8W multi-silicon solar panel |
||
Battery |
Built-in 6 pcs 18650battery, total volume max 19200mAh |
|||
Work Mode |
Low power working mode,can work for 5 months without power supply |
|||
Wake Up |
PIR alarm wake up, remote manual wake up |
|||
Sleep Mode |
When alarm endorremote connection disconnected. |
|||
PowerConsumption |
Sleepingstand-by power: 0.03W; Working: 1.3W@days/3W@night |
|||

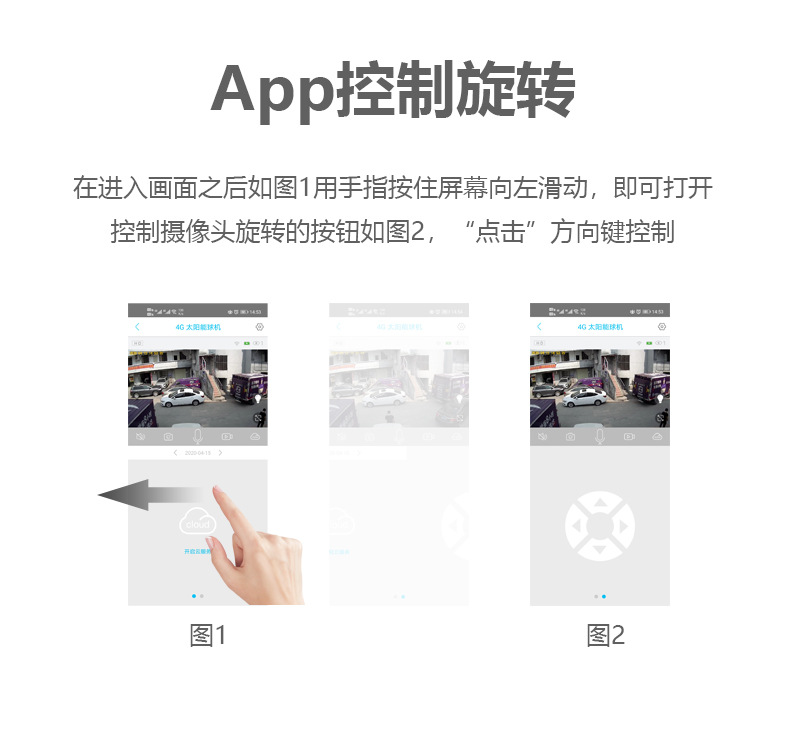

PTZ |
RotationAngle |

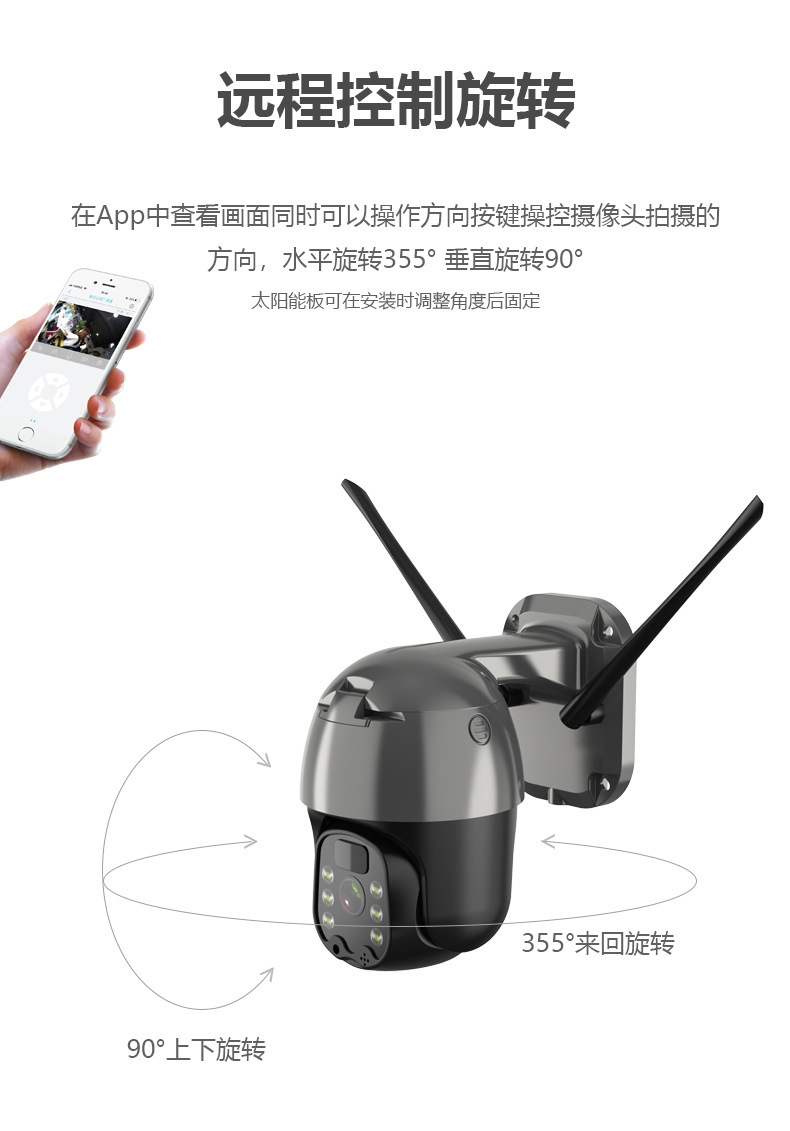

Horizon Pan: 0°~320°, Vertical Tilt: 0°~90° |
||
Rotation Speed |
Horizontal speed: 10°~ 30°/S;Vertical speed:8°~ 25°/S |
|||
Preset |
Support 8 preset points |
|||
General |
Power |
DC5V2A |
||
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉),Humidity 10%~80%, non-condensing |
|||
Product Type |

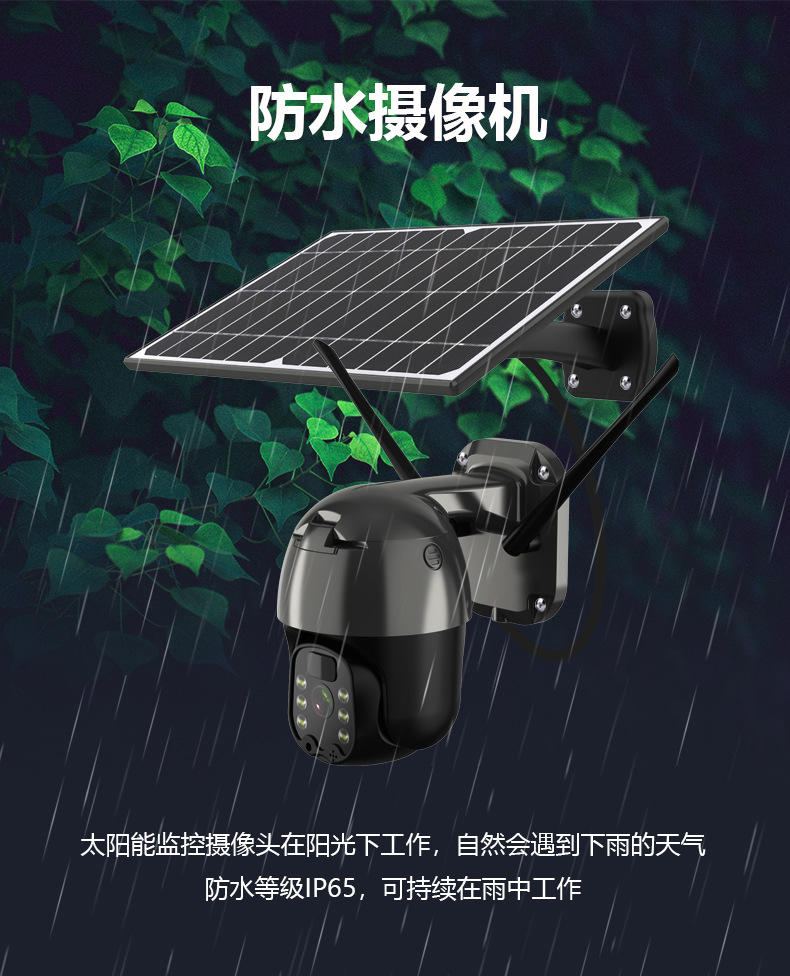

Durable alloy metal housing, vandal-proof,waterprooflevel IP65 |
|||

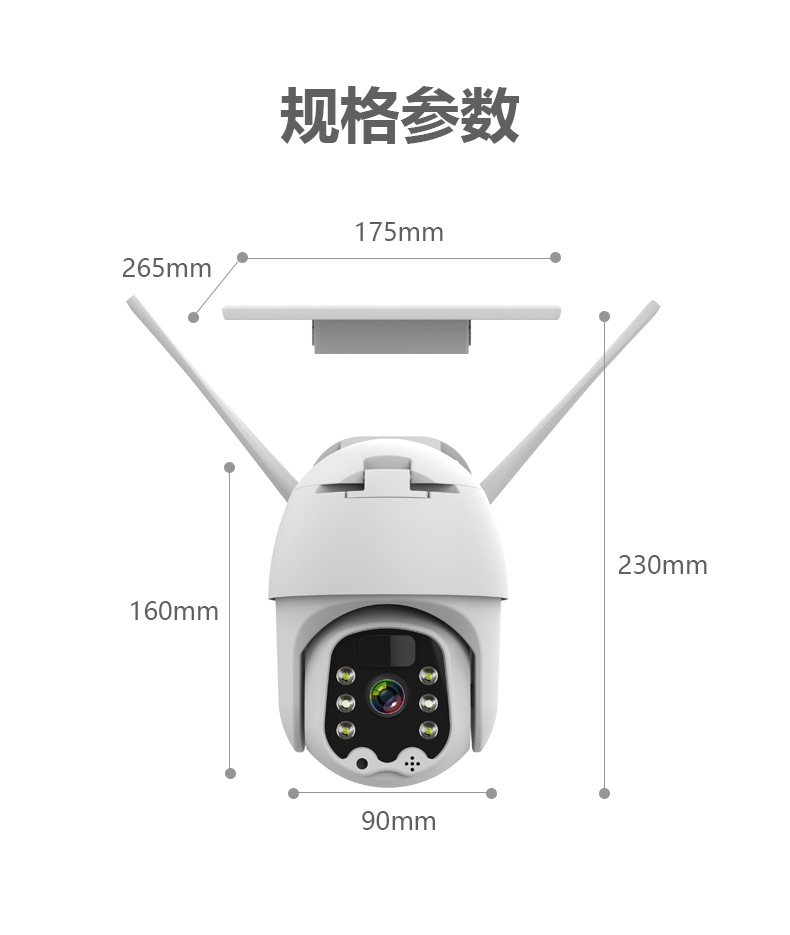

Product Size |
265mm×175mm×230mm(L×W×H).Product weight:1.36kg |
|||
PackageSize |
288mmx203mmx170mm(L×W×H).Packageweight: 1.93kg |
|||
Package Included |
IP Camera, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual |

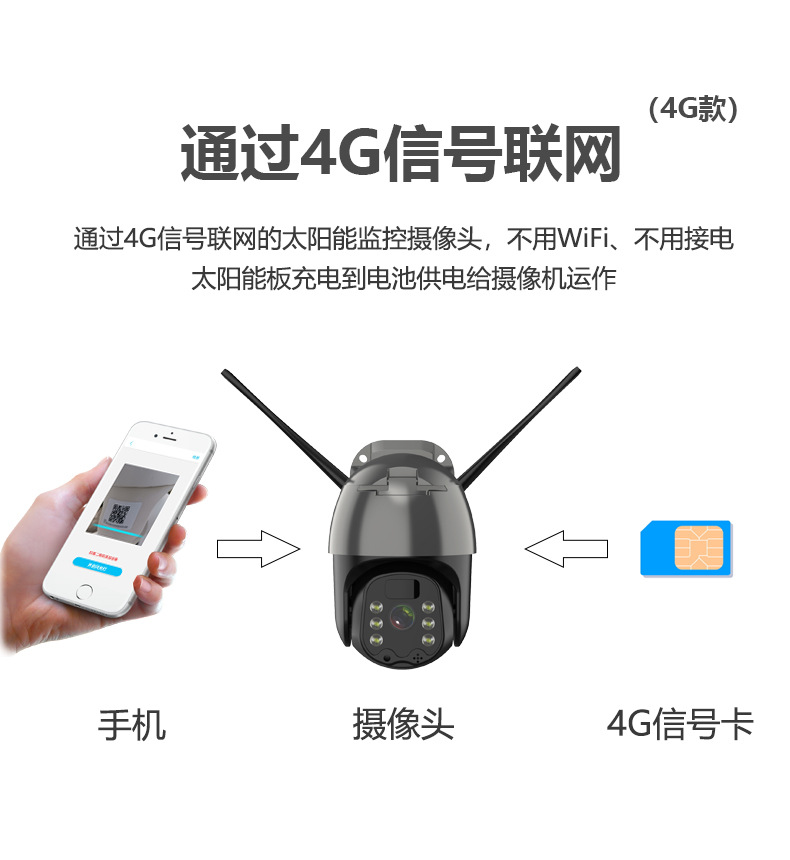

4G参数
Model:Q5-4G |
4G Camera |
WiFi Camera |
||
Network |
4G Standard |
FDD-LTE/TDD-LTE |
N/A |
|
4G FrequencyRange |
欧版/美版/澳版/东南亚版/中国大陆版(4G的联系客服确定国家) |
N/A |
||
InterfaceType |
Nano SIM card, plug and play, easy to set up |
N/A |
||
Wireless Standard |
N/A |
IEEE802.11b, 802.11g, 802.11n Draft |
||
Frequency Range |
N/A |
2.4 GHz to 2.4835 GHz |
||
Wireless Security |
N/A |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
||
Transmission Rate |
N/A |
11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
||
Video |
Sensor |
lngenic T31ZL GC2063,CMOS |
||
Video Eesolution |
Main stream: 1920x1080@15fps, Sub stream: 640x360@15fps |
|||
Video Compression |
H.265 |
|||
Lens Type |
4mm F2.0 lens, Low lux., wide view angle:92 degrees. 3X digital zoom |
|||
NightVision |
6pcs array infrared LEDs,night vision distance 30m.Full-colorful day/night |
|||
Audio |
AudioCompression |
G.726/AAC. Audio code rate:8Kbps, 16bit |
||
AudioInput/Output |
Built-in MIC and Speakers, support two way audio |
|||
Alarm |
PIR Detecting Alarm |
Support max12 meters PIR detection range. |
||
AlarmLinkage |
Alarm record videos to Micro SD card |
|||
Storage |
Micro SD Card |
Support up to 128G micro SD card. Support cloud storage |
||
Recording Mode |
PIR alarm recording. |
|||
Video Playback |
Support Appremote play and download the video |
|||
Power |
SolarPanel |
8W multi-silicon solar panel |
||
Battery |
Built-in 6 pcs 18650battery, total volume max 19200mAh |
|||
Work Mode |
Low power working mode,can work for 5 months without power supply |
|||
Wake Up |
PIR alarm wake up, remote manual wake up |
|||
Sleep Mode |
When alarm endorremote connection disconnected. |
|||
PowerConsumption |
Sleepingstand-by power: 0.03W; Working: 1.3W@days/3W@night |
|||
PTZ |
RotationAngle |
Horizon Pan: 0°~320°, Vertical Tilt: 0°~90° |
||
Rotation Speed |
Horizontal speed: 10°~ 30°/S;Vertical speed:8°~ 25°/S |
|||
Preset |
Support 8 preset points |
|||
General |
Power |
DC5V2A |
||
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉),Humidity 10%~80%, non-condensing |
|||
Product Type |
Durable alloy metal housing, vandal-proof,waterprooflevel IP65 |
|||
Product Size |
265mm×175mm×230mm(L×W×H).Product weight:1.36kg |
|||
PackageSize |
288mmx203mmx170mm(L×W×H).Packageweight: 1.93kg |
|||
Package Included |
IP Camera, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual |
什么是低功耗太阳能监控摄像头?
在太阳下(包括自然光线)通过摄像头的太阳能板充到电池里(18650锂电池3.7V),摄像头需要电池供电才能够正常工作。
这是一款会自动休眠的监控摄像头,为了减低功耗摄像头在没有动态的情况下会自动关机同时也不录像。在画面中距离7-10米半径出现动态会自动启动同时自动录像,打开App也可以启动摄像头同时自动录像。
太阳的充电,摄像头的休眠状态,可满足摄像头长时间有电可无期限使用。人流量越少的环境电量越充足。
Q5球机
耗电实测
电池:6节 每节94%电量,在完全不充电的状态下拍摄颜色智能科技公司,品牌 潜伏者 生产线工作时间的数据
占用内存卡=5.88G
测试开始时间=2021-03-26 12:45
测试结束时间(保存视频文件最后一个)=2021-04-06 8:59
记录视频数量 5807段 MP4格式视频 每段18秒视频
结论:配对到关机 全程没有开启夜视灯状态(都是录制白天的效果)
一共工作 12天(实际:284小时),【其中有:唤醒工作时间104526秒(72.58小时),休眠时间:761112秒(211.42小时)】
充电实测:
测试开始时间=2021-04-22 11:00
测试结束时间=2021-04-24 17:00
6节初始电量0%(以上次测试耗电到关机为止的电量)日照一共25小时,其中云层较多天气充电18小时,云层较少天气充电7小时
测试期间设备启动工作合计时间为:3小时1分18秒 一共记录571段 MP4格式视频,每段18秒视频,最终电量6节96% 测试完成。
WIFI参数
Model:Q5-WIFI |
4G Camera |
WiFi Camera |
||
Network |
4G Standard |
N/A |
Support |
|
4G FrequencyRange |
N/A |
Support |
||
InterfaceType |
N/A |
Support |
||
Wireless Standard |
Support |
IEEE802.11b, 802.11g, 802.11n Draft |
||
Frequency Range |
Support |
2.4 GHz to 2.4835 GHz |
||
Wireless Security |
Support |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
||
Transmission Rate |
Support |
11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
||
Video |
Sensor |
lngenic T31ZL GC2063,CMOS |
||
Video Eesolution |
Main stream: 1920x1080@15fps, Sub stream: 640x360@15fps |
|||
Video Compression |
H.265 |
|||
Lens Type |
4mm F2.0 lens, Low lux., wide view angle:120 degrees. 3X digital zoom |
|||
NightVision |
6pcs array infrared LEDs,night vision distance 30m.Full-colorful day/night |
|||
Audio |
AudioCompression |
G.726/AAC. Audio code rate:8Kbps, 16bit |
||
AudioInput/Output |
Built-in MIC and Speakers, support two way audio |
|||
Alarm |
PIR Detecting Alarm |
Support max12 meters PIR detection range. |
||
AlarmLinkage |
Alarm record videos to Micro SD card |
|||
Storage |
Micro SD Card |
Support up to 128G micro SD card. Support cloud storage |
||
Recording Mode |
PIR alarm recording. |
|||
Video Playback |
Support Appremote play and download the video |
|||
Power |
SolarPanel |
8W multi-silicon solar panel |
||
Battery |
Built-in 6 pcs 18650battery, total volume max 19200mAh |
|||
Work Mode |
Low power working mode,can work for 5 months without power supply |
|||
Wake Up |
PIR alarm wake up, remote manual wake up |
|||
Sleep Mode |
When alarm endorremote connection disconnected. |
|||
PowerConsumption |
Sleepingstand-by power: 0.03W; Working: 1.3W@days/3W@night |
|||
PTZ |
RotationAngle |
Horizon Pan: 0°~320°, Vertical Tilt: 0°~90° |
||
Rotation Speed |
Horizontal speed: 10°~ 30°/S;Vertical speed:8°~ 25°/S |
|||
Preset |
Support 8 preset points |
|||
General |
Power |
DC5V2A |
||
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉),Humidity 10%~80%, non-condensing |
|||
Product Type |
Durable alloy metal housing, vandal-proof,waterprooflevel IP65 |
|||
Product Size |
265mm×175mm×230mm(L×W×H).Product weight:1.36kg |
|||
PackageSize |
288mmx203mmx170mm(L×W×H).Packageweight: 1.93kg |
|||
Package Included |
IP Camera, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual |
4G参数
Model:Q5-4G |
4G Camera |
WiFi Camera |
||
Network |
4G Standard |
FDD-LTE/TDD-LTE |
N/A |
|
4G FrequencyRange |
欧版/美版/澳版/东南亚版/中国大陆版(4G的联系客服确定国家) |
N/A |
||
InterfaceType |
Nano SIM card, plug and play, easy to set up |
N/A |
||
Wireless Standard |
N/A |
IEEE802.11b, 802.11g, 802.11n Draft |
||
Frequency Range |
N/A |
2.4 GHz to 2.4835 GHz |
||
Wireless Security |
N/A |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
||
Transmission Rate |
N/A |
11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps |
||
Video |
Sensor |
lngenic T31ZL GC2063,CMOS |
||
Video Eesolution |
Main stream: 1920x1080@15fps, Sub stream: 640x360@15fps |
|||
Video Compression |
H.265 |
|||
Lens Type |
4mm F2.0 lens, Low lux., wide view angle:92 degrees. 3X digital zoom |
|||
NightVision |
6pcs array infrared LEDs,night vision distance 30m.Full-colorful day/night |
|||
Audio |
AudioCompression |
G.726/AAC. Audio code rate:8Kbps, 16bit |
||
AudioInput/Output |
Built-in MIC and Speakers, support two way audio |
|||
Alarm |
PIR Detecting Alarm |
Support max12 meters PIR detection range. |
||
AlarmLinkage |
Alarm record videos to Micro SD card |
|||
Storage |
Micro SD Card |
Support up to 128G micro SD card. Support cloud storage |
||
Recording Mode |
PIR alarm recording. |
|||
Video Playback |
Support Appremote play and download the video |
|||
Power |
SolarPanel |
8W multi-silicon solar panel |
||
Battery |
Built-in 6 pcs 18650battery, total volume max 19200mAh |
|||
Work Mode |
Low power working mode,can work for 5 months without power supply |
|||
Wake Up |
PIR alarm wake up, remote manual wake up |
|||
Sleep Mode |
When alarm endorremote connection disconnected. |
|||
PowerConsumption |
Sleepingstand-by power: 0.03W; Working: 1.3W@days/3W@night |
|||
PTZ |
RotationAngle |
Horizon Pan: 0°~320°, Vertical Tilt: 0°~90° |
||
Rotation Speed |
Horizontal speed: 10°~ 30°/S;Vertical speed:8°~ 25°/S |
|||
Preset |
Support 8 preset points |
|||
General |
Power |
DC5V2A |
||
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉),Humidity 10%~80%, non-condensing |
|||
Product Type |
Durable alloy metal housing, vandal-proof,waterprooflevel IP65 |
|||
Product Size |
265mm×175mm×230mm(L×W×H).Product weight:1.36kg |
|||
PackageSize |
288mmx203mmx170mm(L×W×H).Packageweight: 1.93kg |
|||
Package Included |
IP Camera, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual |
