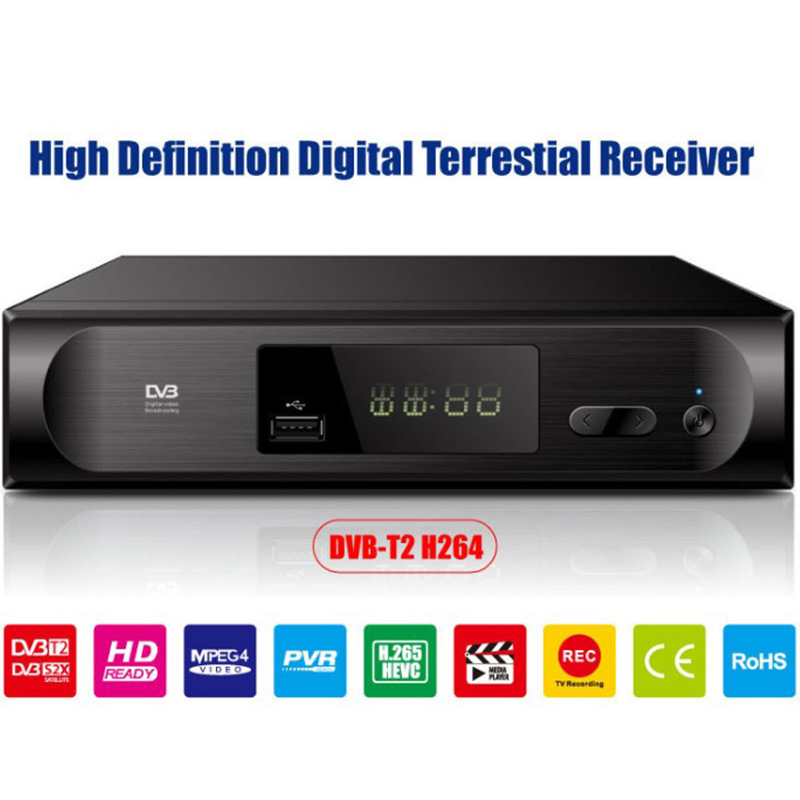

厂家现货批发DVB-T2 tuner MPEG4 1080P高清数字机顶盒

        (Mstar 7t00,USB接口，支持WIFI/YOUTUBE/IPTV/MEGOGO )

您好，欢迎选择顾创来电子------外贸平台金牌供应商

     我司专业从事消费类电子产品的研发、生产与销售，产品直接源自工厂；我们将给您低的价格支持和全面的技术服务，您可以放心订购。

   我司还提供整机OEM定制服务及PCBA采购支持！诚招全国各地经销商、代理商与外贸商！

欢迎海内外客户前来指导工作，我们将努力支持各合作伙伴的成长与发展，欢迎一路同行!

      TEL/WECHAT:   13590122459     QQ：19367029

CPU MSTAR-MSD7T00 NEW chip

Memory MSTAR-MSD7T00 implant 32X16Mbit DDR2 Frequency1066

Flash 32M bytes

Demodulator TypeMSTAR-MSD7T00 implant

TUNERRafael R836

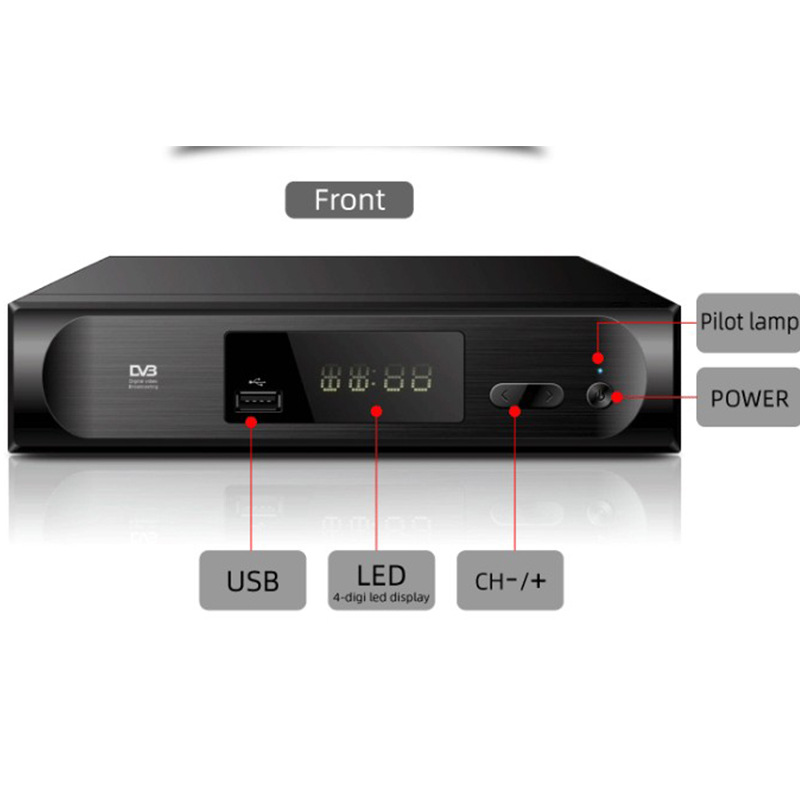

Front PanelUSB 2.0 Embedded One Host,

4-digit LED display on front panel

red LED Standby,green LED Lock

Panel KEY, POWER, CH+ ,CH-

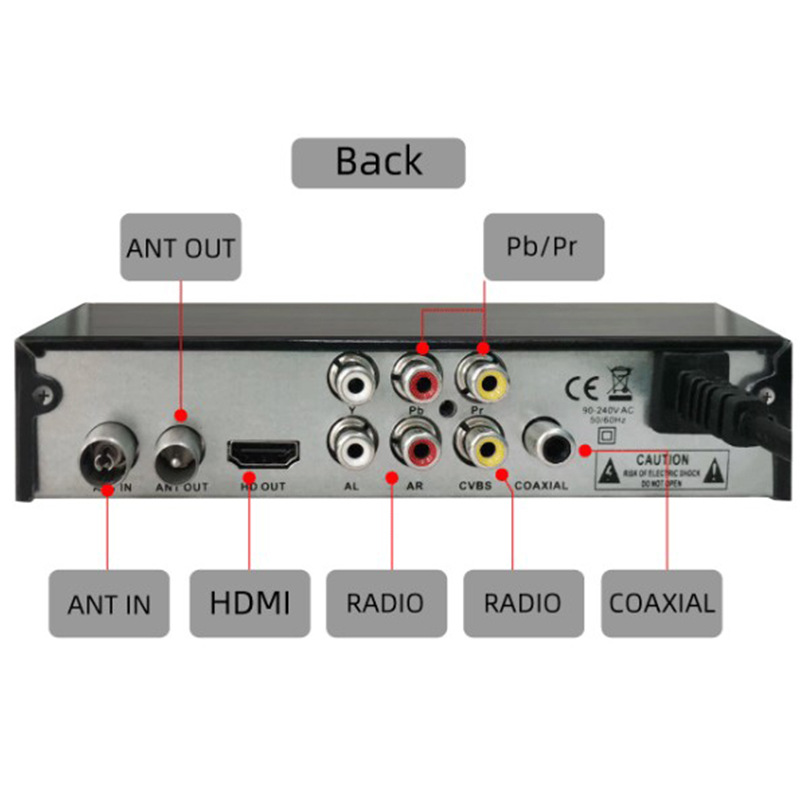

Rear PanelTuner RF input connectorIEC-162-2( Female)

Tuner RF Loop through connector"IEC-162-2( Male)

HDMI V1.3/V1.4

RCA CVBS AL AR Connector x1

Ypbpr RCAx1

Coaxial x1

Power AC100~240V 50Hz/60Hz

Demodulation

Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)

Input RF Frequency48~866MHZ

Bandwidth6MHz,7MHz,8MHz

ConstellationQPSK 16-QAM 64-QAM and 256-QAM

FEC1/2, 3/5,2/3, 3/4,4/5,5/6

Guard Interval 1/128 1/32 1/16 19/256 1/8 19/128 1/4

FFT Mode2K/ 8K/32K

SupportSupport Single and multiple PLPS

Input level -83 - -5dBm

Sortware Features

?Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard

?The maximum speed of the traffic flow of at least 50 Mbit / sec

?Support 3D interface

?Sleep Timer

?Support teletext/subtitle/muti-language

?Powerful and highly effective 7-day EPG function

?AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen?USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

?Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder

Video Decoder

Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile# Main Level(15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features

Media Codec：avi，mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec：WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec：JPEG, BMP, PNG

机器尺寸：168*58*38MM

彩盒尺寸：175*155*70MM

整套重量：0.42KG

一箱数量：40PCS

外箱尺寸：735*330*375MM

净　重　：16.8KG

毛　重　：17.5KG
